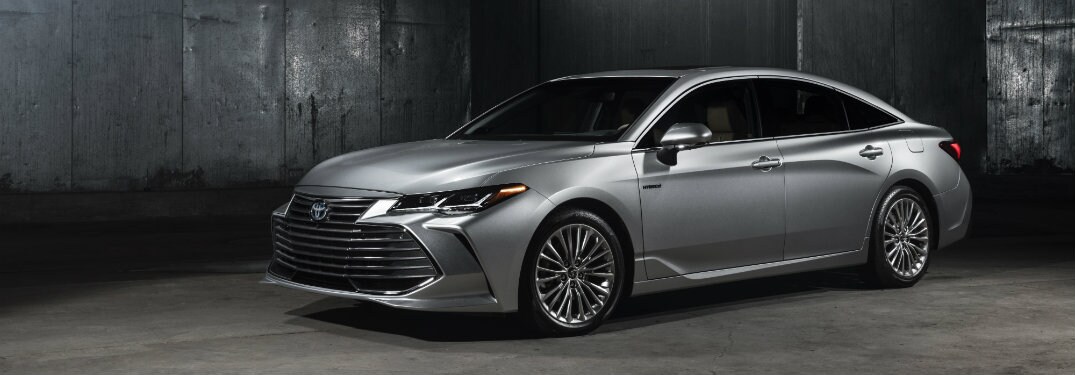

Fifth Generation 2019 AVALON Coming this Summer



To its menu, Avalon mixes a bevy of Toyota-firsts such as standard Apple CarPlay and Dynamic Auxiliary Turn Signals, available authentic Yamaha wood and aluminum cabin accents, and Engine Sound Enhancement. In addition, drivers will appreciate the standard passive and active safety benefits through Toyota Safety Sense P (TSS-P).

Bar, you've just been raised.

Flagship Makeover

For its fifth generation, Avalon received an all-encompassing makeover by Toyota's design, engineering, and manufacturing entities at Calty Design Research Inc. (Calty) in Ann Arbor, Michigan; Toyota Motor North America Research and Development (TMNA R&D) in Saline, Michigan; and Toyota Motor Manufacturing, Kentucky (TMMK), respectively. The all-new Avalon development is spearheaded by Chief Engineer, Randy Stephens, and Calty President, Kevin Hunter.

The teams minded two keywords throughout their development paradigm: Authenticity and Exhilaration. Both were applied in every area of Avalon's sophisticated essence, and throughout the two available grades: the athletic XSE (all-new) and the more opulent Limited.

Hello, Technical Beauty

A wealth of Calty signature elements cocoons Avalon's long, low-slung TNGA musculature. Its expressive looks diligently reflect the mixture of all-encompassing, performance-focused personality, the invigorating driver experience, and a premium, spacious image.

A philosophy of Technical Beauty permeates Avalon's body lines and cabin landscapes. Technical, which aligns with Authenticity, represents purpose and performance - tangible elements of the sedan's style. Beauty, which aligns with Exhilaration, represents onlookers' emotional reaction to Avalon's taut lines and sleek silhouette.

Because of its adaptable TNGA core, the Calty team penned Avalon's exterior to be longer, lower, and wider than before. Unique, never-before-accomplished stamping methods also aided in the deep draw panels that express distinguishable sculpted forms. Complex surfaces could now be shaped, like at Avalon's door handles that coincide with its profile's bold character line. A distinct, carved lower rocker panel behind the front wheels visually exemplifies the benefits of TNGA.

Avalon's dimensions echo the seductive physiques of high-dollar premium vehicles. Its cabin, however, keeps its characteristic low-profile heritage by extending the rear cabin farther by another 178 mm, and elongating side quarter glass and downward tapered C-Pillar by 56 mm. To finalize the ingenious profile, engineers and designers implemented a 8 mm radius corner - the tightest ever for Toyota - fore of the steep pillar.

Avalon's various height measurements have been trimmed: overall (by 25 mm to 1,435 mm), cowl (by 30 mm), and rear deck (by 20 mm). So too have front and rear overhangs (down 9 and 25 mm, respectively), as well as wheelbase (up 50 mm). Along with its wider front (up 11 mm.) and rear (up 37 mm) tracks, and width (up 20 mm to 1,850 mm.), Avalon's premium aura and sporty stature are further emphasized.

Nowhere is Toyota's "Under Priority" brand identity (a direction that prioritizes aerodynamic efficiency, cooling, and pedestrian protection) clearer than at Avalon's stunning face. Available slim all-LED projector headlights simultaneously speak to its sportiness and elegance. They're but a piece of the façade's compelling story, though, that depicts the intersection of three-dimensional surfaces and assorted functions - the aluminum hood's longitudinal lines and lightweight build; the wide, modern grilles built for air-slicing sleekness; tangential vents at its lower portion crafted for the effective direction of passing air across the front tires and along Avalon's buff flanks. The chiseled doors achieve a deeper character line thanks to TNGA prototype stamping applied at TMMK.

Simple horizontal character lines slice across the backside, at the top, centre, and lower portions. Its 1,850 mm width, in effect, is highlighted substantially by the distinct sectioning. Connected LED tail lamps shaped in a three-dimensional, "aero fin" style differentiate the landscape from the current iteration. They integrate backup, stop, and turn lights into a single harmonious, fluid form.

Differences between the grades are clear. A dark gray front grille with chrome border, for instance, is a telltale sign of the Limited version. So too are the machined-silver LED headlight bezels, body-colour rear-view mirror housings, and unique 18" wheels. Chrome badge letters, as well as dual exhaust with chrome tips individualize the grades.

A more aggressive attitude is worn by XSE. A piano black mesh grille, machine-finish and 19" Gloss Black wheels, as well as black outer mirror housings are special to the grade. Headlight bezels - also in black - create an engaging mystique never before possessed by Avalon. Rear traits include trunk lid spoiler and badging in black, and a grade-specific lower diffuser set above and between quad tailpipes.

The lineup adopts two all-new Toyota colors: Opulent Amber and Grey Harbor Metallic. Carryover colors include Celestial Silver Metallic, Midnight Black Metallic, and Parisian Night Pearl; new-for-Avalon options include Platinum White Pearl and Ruby Flare Pearl.

Form follows function in Avalon. The tangential vents at the front, its rear spoiler, and the substantial underbody panel coverage, from front nose to tail, minimize aerodynamic inefficiencies and give Avalon a 0.27 coefficient of drag - besting the outgoing model's 0.28 Cd.

Enlightened Lighting

Avalon's available LED Vision Tech headlamps are the most advanced lighting realized by Toyota. The slim headlights employed by XSE grade utilize a cluster of three reflectors for Daytime Running Lights (DRL) and low- and high-beam functions, providing exceptional light disbursement in an array of situations, including foul, low-visibility weather.

For Limited, each headlamp is comprised of thin lighting modules - one for low beam, another for high - plus, an Adaptive LED Cornering lamp and a Dynamic Auxiliary Turn Signal. Each is a Toyota First. The innovative cornering lamps enhance visibility around corners and curves during low- and high-speed maneuvers, as well as when changing lanes or when reversing. The lamp fades in and out for seamless activations and transitions, and adds 60 percent more foreground width to the low beam's pattern. The Dynamic Auxiliary Turn Signal provides an added degree of noticeable visibility by activating each auxiliary diode in sequential fashion, rather than all on, all off.

Another Toyota first intersects the trifecta of lighting elements within the headlamp: Signature DRL and Parking Light with Technical Laser Ablation. The technology allows light to transmit through its transparent areas encased by a laser-ablated, metallized inner lens. Laser ablation creates a specialized texture by way of intricate patterning.

Avalon's LED taillights also implement laser ablation on Limited units, as well as Dynamic Auxiliary Turn Signal. The lamps' three-dimensional Aero Fin Jet makeup insets the reverse indicator below the rear lamp, effectively widening the look of the housing, and in turn, the sedan's muscular hips.

Cockpit Meets Cocoon



Avalon's fluency in luxuriousness and exhilarating extroversions isn't restrained to its provocative looks. Its TNGA platform's thin structural pillars and broad windshield lend to the wide, open impression that passengers garner, be they seated in front or rear rows.

Upon opening Avalon's doors, an overarching simplicity and a purposeful placement of amenities and controls welcomes passengers. Authentic materials, such as the available Yamaha-sourced wood-trim and authentic aluminum pieces, accent arm rests, centre console, and instrument panels.

Soft-touch materials are noticeable throughout - around the flowing, low-profile centre console decorated in piano black trim; on the slim, tiered instrument panel leading into the doors; in the rear compartment, where doors and console mirror the impressive craftsmanship seen in the front cockpit. A rear cup and device holder, accented in piano black and satin chrome-finish, folds up and down in the armrest between passengers. Ahead of their knees and within arm's reach: air vents, controls for the available seat warmers, and essential USB charging ports. Deep curvatures in doors' armrests provide passengers with ample surface area and comfort during long commutes. Rear seat roominess is exemplified by Avalon's segment-best measurements in three categories: shoulder room (1,450 mm), leg space (1,024 mm), and headroom (952 mm).

Material differentiation between grades is minimal; Limited features real wood trim. Aluminum pieces adorn XSE's cabins. A mix of Perforated Ultrasuede wraps all seating in XSE. Limited goes beyond this creative approach by adding a quilt pattern, special perforation, and two-color stitches - all unique to Toyota.

New-for-2019 Cognac coloured leather-surfaces highlights Limited's upscale vibe. Joining Cognac in Limited's color quiver are available gray and beige leather; XSE comes with black Perforated Ultrasuede.

At the front seats, attentions are immediately fixated on Avalon's slim centre stack. The thin panel houses Avalon's 9-inch multimedia system (MMS) displaying audio and navigation, and integrates the automatic climate control system. Satin chrome decoration surrounds the centre cluster panel that "floats" above the instrument panel, further emphasizing the balanced aura of the modern atmosphere. Below the panel, passengers have easy access to the slide-open E-Bin containing a 12-volt plug and a trio of USB power ports (making for five total), plus, the standard wireless Qi mobile device charger. A part cup-holder, part phone cradle located atop the front console, sits adjacent to the gear selector; supple padding lines either side of the console's lower tunnel at knee height.

A three-spoke steering wheel welcomes drivers' eyes and hands with smooth, satin chrome-finish accents and conveniently placed multifunction controls. Visually, the wheel's aesthetic is neater, having a trimmed inner physique and smaller switch cluster, while hand grips have been enlarged. Cruise Control is now accessible on the wheel's right spoke. Also for the first time in Avalon, the steering wheel can be wrapped in a two-tone leather-surface when outfitted in Cognac or gray.

Past the steering wheel, a 7-inch Multi-Information Display (MID) shows vehicle information, turn-by-turn navigation, and various vehicle settings (including those pertaining to Lane Departure Alert with Steering Assist, Pre-Collision System with Pedestrian Detection, available Intelligent Clearance Sonar, Blind Spot Monitor with Rear Cross-Traffic Alert, and Head-Up Display). A new digital speedometer can be accessed by drivers.

On the MID's left, there's a tachometer with long bright white needles and updated typeface. On its right, a speedometer. The tachometer and speedometer are surrounded by 3D Glow Rings. A chrome ring borders the entire meter cluster on all grades.

Limited's standard colour 10-inch Head-Up Display (HUD) - the biggest in the segment - clearly projects important info, such as vehicle and engine speeds, turn-by-turn directions, audio settings, and drive mode, right onto the lower portion of the windshield. It helps drivers stay focused on the road ahead, and is one third of Avalon's "driver control zone" made of MMS, MID, and HUD. All of them align seamlessly for optimum communication between occupants and vehicle.

Mega Multimedia

A 14-speaker JBL performance audio system is standard on XSE and Limited grades. XSE passengers can listen to crisp tunes having Entune 3.0 Audio Plus with Connected Navigation Scout GPS Link App and Entune 3.0 App Suite Connect, featuring in-vehicle third-party applications such as NPR One or Slacker. Apple CarPlay is standard on all grades.

Entune 3.0 Toyota Connected Services include Safety Connect.

The system's new 9-inch capacitive touchscreen can be pinched and flicked, just like personal mobile devices - perfect for pinpointing your favorite pizza joint. Its refresh rate is quicker, its voice recognition is more perceptive, and it better recognizes users' gestures.

With a standard 14-speaker system - the most speakers in the segment - and Entune 3.0 Premium Audio, passengers seated within Limited grade are treated to unprecedented aural and visual stimulus and will enjoy embedded Dynamic Navigation.

1200 Watts, Tailored by JBL

Engineers benchmarked the best systems, two vehicle classes up, into the higher-priced premium large sedan segment. The result: a 14-speaker, 1200-watt, precisely-tuned 7.1-channel surround sound that leverages the benefits of a robust TNGA structure, and utilizes the top in hardware, structural engineering, and software technology.

Key highlights:

  • Hardware:
    • Four 1-inch freestanding JB Horn Tweeters control the directivity of sound waves to maximize the optimal listening area at ear level
    • One 12-channel next-generation, Class-D HID12 amplifier to pump 1200 watts of total power to the system, allowing for improved performance and unparalleled efficiency
    • One 10-inch Dual Voice Coil Subwoofer to provide more powerful, deep bass response
    • Two 6-inch Wide Dispersion Speakers in rear doors
    • Two 8x9-inch Wide Dispersion Woofers in front doors
    • Five 3-inch Wide Dispersion Midrange Speakers throughout
  • Software:
    • Clari-Fi rebuilds crucial audio signals lost during digital compression
    • Quantum Logic Surround (Toyota-First) to create an unprecedented 7.1 channel surround sound listening experience from any signal source
  • Structure:
    • Sealed inner doors for cleaner, more powerful bass
    • JBL Branding, located on A-Pillar, door trim, and multimedia display

The Toyota first Quantum Logic Surround combines individual signal streams of music by using patented filter bank technology and psychoacoustic modeling to create an immersive multi-channel listening experience with exceptional clarity, detail, and image specificity. Clari-Fi analyzes audio streams in real time, rebuilds key details lost in processing, and restores high-fidelity.

Mid-Size Sedan Heart, Small Car Efficiency

Hustle, athleticism, and fuel-efficiency. Each of these riveting traits has improved, in large part, because of a new punchy 3.5-litre V6 (2GR-FKS). The TNGA-derived V6 develops more power with less fuel consumption than ever before. Achieving the two took the application of D-4S direct injection, along with an updated VVT-iW (Variable Valve Timing-intelligent Wide) variable valve timing system.

The VVT-iW system is employed on the intake cycle, with VVT-i (Variable Valve Timing - Intelligent) activated on exhaust. With VVT-iW in place, engineers ensured optimal torque creation at all engine speeds, and minimized pumping losses during the closing of intake valves, which furthered fuel efficiency. The use of Atkinson cycle, too, reduces the V6's fuel appetite, particularly in cold climates or during wide-open throttle (WOT) situations.

Gears for All Occasions

An all-new TNGA 8-speed Direct Shift-8AT automatic transaxle gearbox (UA80E) channels power to the Avalon's front wheels. It merges smooth, precise gear selection throughout the RPM range with an alacrity for fuel efficiency and on-demand power. Its revised logic control better matches vehicle speed, engine speed, and torque engagement, while also facilitating poised downshifts.

Its eight gear ratios balance wide range and close ratios, therefore enhancing power application and fuel efficiency. A wider range, specifically at the increased 8th gear ratio, allows for improved high-speed cruising fuel economy. Close ratios at the mid-range gears improve passing power.

A new torque converter provides a wider range of lock-up operation (versus the outgoing 6-speed automatic transmission) to imbue a more enveloping and direct driving feel. The converter contributes to low fuel consumption and passenger comfort, since engine revving is kept to a minimum.

The most thrilling shifting experience, however, is reserved for XSE drivers, whose steering wheel-mounted paddle shifters up Avalon's sportiness ante without question. The paddles give quick access to gear selection, and when downshifting, the gearbox automatically "rev-matches" for smoother shifts.

Piquing the Adventurous Side

Complementing Avalon's daring looks is a thrilling drive personality imbued by an array of available sport-oriented tools - which together, represent a Toyota first. Intake Sound Generator (ISG), grade-specific exhaust baffle tuning, Active Noise Control (ANC), and Engine Sound Enhancement (ESE) fully exemplify Avalon's most adventurous zeal ever. All Avalon grades receive a three-level drive mode selection (Eco, Normal, Sport).

The new multi-link rear suspension allows for the enhancement of many positive performance attributes, such as a wider rear track, lower centre of gravity, and an aggressive stance. Revised trailing arms have been installed at a higher position to place the pivot axis of the tire rearward for better bump absorption. The setup's shock absorbers are tilted forward, too, to realize a suppler ride. Bushings on the trailing arms and arm joints further mask passing road imperfections.

The 2019 Avalon takes full advantage of their innately sporty platform and multi-link rear suspension, and to them, add thicker stabilizer bars and stiffer spring rates for maximum handling dexterity.

World Class Acoustics, Inside and Out

Avalon's refined acoustic repertoire spans inside and out. Through Sport mode, passengers receive a concerto of exciting, natural sounds through a new exhaust system with sport modified baffles, an Intake Sound Generator (ISG), Active Noise Control (ANC), and Engine Sound Enhancement (ESE).

ISG amplifies the engine's air inhalation sound to create robust vocalization, and on the exhalation end, the all-new exhaust with baffle tuning ups the sound character at start-up, idle, and acceleration. ANC and ESE work to cancel any unwanted exterior noise while simultaneously augmenting engine sound via the JBL multimedia system's in-cabin speakers. Exceptional engine notes at start-up are also enhanced; a hearty "flare" of sound occurs right before idle upon start-up. At wide-open-throttle acceleration, more engine grunt is heard throughout the rev range.

For all its added energetic vocalization, Avalon never ceases to deliver a civilized, library-quiet interior, if desired. Road noise and engine droning have been culled, while cruising quietness and engine sound have been improved. Its TNGA platform utilizes additional seals where front fenders meet front doors, and where the doors merge at the B-Pillar. More sound absorption material is found in the engine bay, within the carpet pad, under the floor, and in the wheel well liners. The exterior rear-view mirrors not only reduce drag, but also wind noise, making for an extremely quite environment for all.

Top Toyota Safety Tech

Avalon's standard Toyota Safety Sense P (TSS-P) suite of safety systems and technologies represents one step closer to achieving Toyota Motor Corporation's ultimate goal of "zero casualties from accidents."

TSS-P bundles cutting edge active safety technologies including Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), and Automatic High Beams (AHB). Additional standard safety technologies include Blind Spot Monitor (BSM) with Rear Cross Traffic Alert (RCTA).

Also available are the Panoramic View Monitor with Alert (PVMA) and Intelligent Clearance Sonar (ICS), which now includes a Rear Cross Traffic Braking (RCTB) system.

All 2019 Avalons have 10 standard airbags and Toyota's Star Safety System, which includes Enhanced Vehicle Stability Control, Traction Control, Electronic Brake-force Distribution, Brake Assist, Anti-lock Braking System, and Smart Stop Technology. All Avalons also come equipped with a standard backup camera.

Assembled in North America

For over two decades, Avalon's sole manufacturing home has been Toyota Motor Manufacturing, Kentucky (TMMK) in Georgetown, KY. All Avalons sold in North America and around the globe are assembled in Georgetown by about 8,000 team members.
